Digital Audio De-Multiplexer

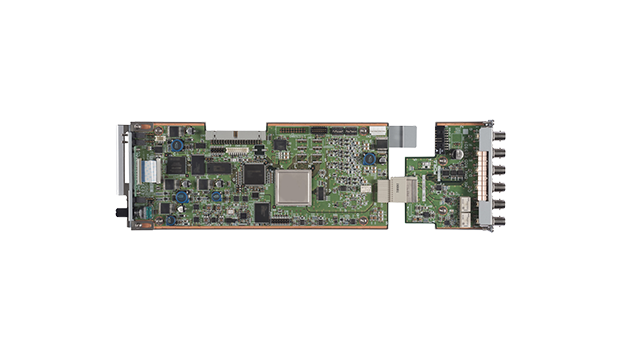

The UFM-30DEMUX is a module-type digital audio de-multiplexer designed to extract 8-channel AES/EBU signals (4 stereo pairs) 3G-SDI, HD-SDI or SD-SDI signals. ANC time code can be output as LTC by switching an AES output to LTC output.

Main Features

  • De-multiplexes 4 pairs of AES/EBU signals (8 channels)  SDI signals

  • Supports 3G-SDI Level A/B

  • Sixteen channels of embedded audio can be assigned to 8 arbitrarily selected AES channels*

  • Supports asynchronous embedded audio de-multiplexing

  • Supports remapping and multiplexing of embedded audio onto SDI signals after de-multiplexing and remapping

  • Switching  AES OUT 7/8 to LTC OUT allows LTC output support. ANC time code can be output as LTC

  • Enables SDI signal input to bypass output when the power is turned off or By-pass mode is selected

  • UFM-3DMXAO: Analog audio output option. Equipped with connector for independent LTC time code output
    *With asynchronous audio sources, audio channels can be freely mapped on a per-group basis, not per-channel
