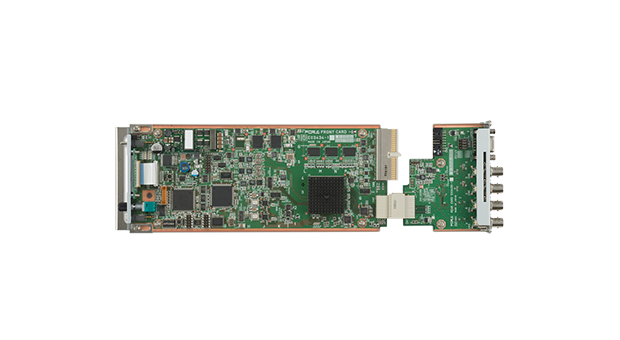

Modular-type HD/SD-supported color corrector that can be mounted on a UFM frame. The lineup includes multiple model choices to meet user applications. With a device design that anticipates the next-generation signal specification 3 Gbps, the line enables continued device usage during transition to the 1080/60p, 1080/59.94p and 1080/50p formats.
HD/SD Single channel color corrector HD/SD-SDI 2 inputs (selectable), 2 outputs DCC-OUA control or DCC-NETOU or Web browser control selectable Varied color correction (Balanced, Differential and Sepia modes) Gamma adjustment and clip function Complete ANC data pass-through HD/SD dual channel color corrector Operation mode selectable Varied color correction mode Gamma adjustment and clip function Complete ANC data pass-throughUFM-30DCC
UFM-30DCC + UFM-3DCC2C
Single channel mode
Dual channel mode (2-channel system, individual setting)
Link mode (2-channel system, a setting)
