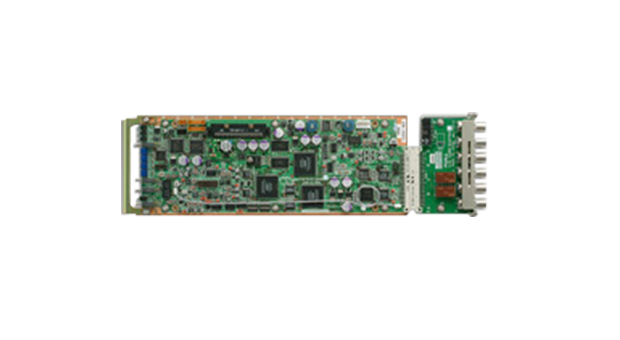

SD/Analog Frame Synchronizer & TBC


A compact and very powerful TBC/FS, the UFM-147DFS is capable of analog composite to/from digital component conversion, and has wide range internal genlock capability, so that almost any SD-SDI or composite signal can be genlocked.

  • SD-SDI or Analog composite input/output.

  • Supreme composite to/from digital component converter.

  • Line sync (for minimal delay) or Frame sync selectable.

  • 10-bit digital Y/C comb filter.

  • 10-bit 4:2:2 component system adopted for internal signal processing.

  • SD-SDI ANC data pass through.

  • UFM-100AED: Optional audio multiplexer/demultiplexer
