SD/Analog Frame Synchronizer & TBC

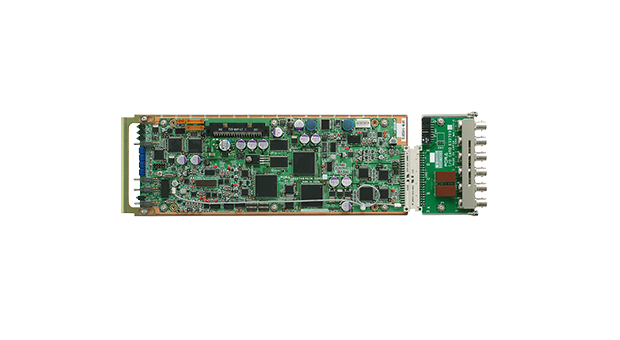

The UFM-145DFS is a module-type TBC/FS with the supreme analog composite to/from digital component converter, It has wide internal genlock capability, so that almost any SD-SDI or composite signal can be genlocked.

  • Supreme composite to/from digital component converter.

  • Line sync or Frame sync selectable.

  • 10-bit digital Y/C comb filter.

  • 10-bit 4:2:2 component system adopted for internal signal processing.

  • SD-SDI ANC data pass through.

  • SD-SDI signal EDH enable/disable.

  • Proc Amp function.

  • Monitoring analog composite available.

  • Dedicated optional audio interface, UFM-100AED, enables embedded/de-embedded audio.

  • Hot-swap architecture.
