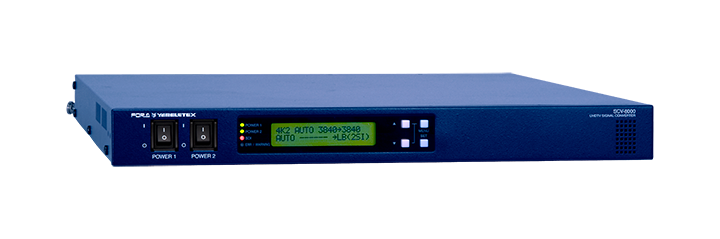

UHDTV Signal Converter

SCV-8000

Bidirectional conversion for 4K and 8K signals

Super Hi-Vision Dual Green Signal Converter
Bidirectional 8K HD-SDI (x16) - 3G-SDI (x8) and 4K Level-A/B, SQD/2SI signal conversion. Supports embedded audio, time code, and other ancillary data.

8K: 1.5G/3G conversion

Automatic conversion mode switching, based on input signal payload. Manual switching is also selectable.

4K: SQD/2SI conversion

Automatic conversion mode switching, based on input signal payload. Manual conversion is also available. Each channel is separately configurable.

Audio remapping

In 1.5G to 3G conversion
G1-a/b output: Channels 9-16 mapped behind 1-8 in stream A, and channels 1-8 behind 9-16 in stream B
G1-c/d output: Channels 25-32 mapped behind 17-24 in stream A, and channels 17-24 behind 25-32 in stream B

Menu settings

Convenient displays of operational mode (DG 8K/4K), conversion mode and frame frequency settings on the front LCD panel.

Redundant power supply

Built-in redundant power supply ensures uninterrupted operation in the event of a power supply failure.
