MXF Clip Server


The Perfect Unit for Filebased Production

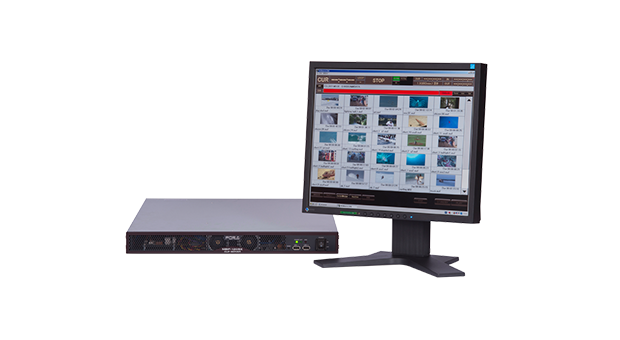

These two models (MBP-120SX/125SX) are compact (1U) video clip servers equipped with HD/SD-SDI inputs and outputs and a solid-state drive (SSD) for recording. Record and play MXF files compatible with Sony XDCAM/XDCAM HD/XDCAM HD422. Clips can be transferred or saved over Gigabit Ethernet. Highly versatile and reliable, the servers can be used in a variety of applications including ingest, playback, and even program playout using a playout system.

  • 1U compact main unit employs a vibration-resistant case

  • MBP-120SX: Sony XDCAM/XDCAM HD/XDCAM HD422 compatible model

  • MBP-125SX: Sony XDCAM/XDCAM HD/XDCAM HD422 compatible model with 8 channels of AES I/O model

  • Mutual conversion between MXF files and HD/SD-SDI signals in real time

  • Supports media file ingest from the XDCAM drive or network drive

  • Obtains HD/SD-SDI baseband signals

  • Supports direct playout from an external XDCAM drive via USB 3.0

  • Supports high-speed data transfer via Ethernet or USB

  • Genlock capability (BB or Tri-level)

  • Supports basic VTR commands using RS-422 remote interface

  • 8 channels of embedded audio support

  • Includes control software

  • Solid State Drive (SSD) included

  • The standard capacity of the SSD is 240 GB
    * Encoding and decoding cannot be performed at the same time

Playback via touch-panel interfacesPlayback using playlistsList management (optional)
