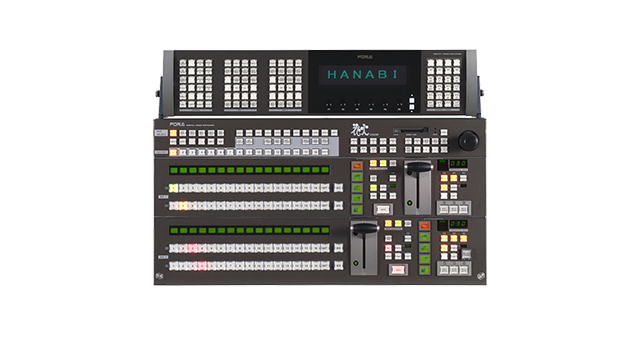

The 2M/E HANABI has made another dramatic advance by adding HD/SD multi-bit rate/multi-format support*, Real 3D digital video effects (DVEs), color correction, a wide range of expansion options for ensuring future compatibility, and a host of other functions. The HVS-3800 series offers functions and performance that are a step ahead of the competition. *HVS-3800HS only. The HVS-3800S is SD only.
HVS-3800HS is switchable between HD or SD formats by simply re-initializing the Operation Unit's mode setup. HVS-3800HS functions in various HD formats such as 1080/60i and 720/60p. Additional support includes 4:3 display generation in HD mode; or the choice of letter-box or squeeze display in SD mode. Thus, providing the preparation needed for up/down conversions. HD formats: 1080/60i, 59.94i, 50i, 24p, 24PsF, 23.98p, 23.98PsF, 720/60p, 59.94p, 50p In addition to the HD/SD multi-bit rate/multi-format model, the lineup also includes the HVS-3800S model specifically designed for SD. It provides the full range of features included in the HVS-3800 series at a reasonable price. By purchasing HVS-3800S, you don't have to worry about HD compatibility in the future. The HVS-3800S and HVS-3800HS share a common platform so when you examine converting to HD, you eliminate the need for additional investments to replace the main unit. Instead, you can upgrade to the HVS-3800HS for support of HD and SD with only a minimum amount of cost The HVS-3800 series includes compact, 12-button or 16-button or 24-button control panel. The control panel keeps the same familiar HANABI series operating system that has been widely used by our customers with a new design for easier usage and more functionality. The main unit incorporates a redundant power supply, DVE cards, additional function options, and a wide range of other functions in 4RU size. The additional function options also allow installation of a number of video peripherals for use of fewer system devices and reduced space. Internal DVE cards can be installed for enabling effects. Up to 2 cards can be installed. HVS-38DVE2D designed for HVS-3800HS. It enables use of 1-channel DVE in HD mode or 2-channel DVEs in SD mode. Also HVS-38SDVE2D designed for HVS-3800S. It enables use of 2-channel DVEs in SD mode. The channels can be assigned to any bus (BKGD, KEY1, KEY2, and KEY3). In additional to regular DVEs, users can also install a card for the most eye-catching feature of the HANABI series, real 3D DVEs. Real 3D DVE Uncompromised high image quality New defocus circuit design Trail effects Internal still image memory Optional color correction functions can be installed in the primary and keyer. Process control, gamma corrections and various clip functions are all available. The parameters for any of these functions can be registered in the event memory to enable different changes to be made in the course of sequences. Gamma adjustment functions in HIGH, MID and LOW tones Process control functions (video level, chroma level and setup level) Various clip functions (RGB/YPBPR) The HVS-3800HS offers a total of 6 keyers, with 3 keyers for each M/E (2 keyers + 1 DSK) as standard. This enables keying of up to 9 layers when re-entry of one M/E line is used. Chroma key functions are also available for KEY1 and KEY2 of each M/E. Up to 4 keyers can be used. In addition to the standard 4 still stores, a memory card can be used to enable importing of image data a PC and exporting images stored in the switcher. Logo animation and motion blur using divided areas of the image are also supported. Options can be added for two more still stores. DVEs can be applied to the PGM, PST, KEY1, KEY2, and KEY3 buses for enabling transitions for the image using wipe or mix. This makes it easy to set picture-in-picture and other effects. The Forced Background function allows mixing or wiping effects inside the digital effects image for more versatile renditions of effects despite being a 2M/E switcher. The HVS-3800HS includes an event memory that can store the data for up to 200 events and setting conditions. In addition to memory cards, HVS-38SS or HVS-38SSAM6/12 options can also be installed in the main unit. This enables storing of up to 200 still images files (in HD format) without using any external media. An optional frame memory HVS-38SSAM6/12 can be installed as an expansion function to enable storage and playback of movie files as uncompressed HD video. HVS-3800 series features 10 standard auxiliary output buses. HVS-38AUMV option can be added for 6 more auxiliary buses. Expansion of your system is easy. You can ever connect an optional auxiliary controller for remote operation. With the HVS-38AUMV option, the HVS-3800 series can accommodate two 4 input systems that can show split-screen displays on a single screen. The inputs can be assigned to any section of the split screen display. This enables use of fewer monitors for checking the display input without any external devices. Up to 4 channels can be installed for up converter input HVS-38UC or down converter output HVS-38DC*. This enables up-converted signals to be assigned to the M/E, AUX, and KEYER buses in the same way as external input and internal still stores. Support is provided for a wide range of editing protocols. Installation of the optional editor interface HVS-38ED enables connection of editors various makers to this system. (Supported protocols: BVS-3000 and GVG-100) A sequence memory of up to 20 patterns can be set in combination with the registered event memory. Sequences can be linked to faders for even easier operation. Shortcut buttons are provided that enable registration of user-selected functions and menu options for speedy switcher operation. The Motion Blur function can provide blur trail effects for moving images. The effect level can be adjusted with the fader control. A gradation function based on up to 5 colors is provided. Colors can be assigned to backgrounds, wipe borders, and keyer mattes. AUX 10 can be operated as an edit preview bus using control the editor. (This requires the optional HVS-38ED editor interface.) A safety area marker is provided for use during down conversion and can be displayed as a box or bracket shape. Color bar generation also comes standard. In the AUX output, the ANC data can pass through or be swapped. The standard ARCNET interface is provided to enable connection of multiple OUs for a single main unit and control of multiple main units a single OU (up to five units). HVS-38HSDI: HD/SD 12 Input Expansion Card HVS-38DVE2D: HD/SD-compatible 2D DVE Card HVS-38DVE3D: HD/SD-compatible Real 3D DVE Card HVS-38CC: Addition of Color Corrector HVS-38IOEX: HVS-38AUMV/UC/DC Interface Card HVS-38AUMV: Expansion of AUX/MV Card HVS-38SS: Expansion of Still Store Card HVS-38SSAM6/12: Expansion of Still Store and Animation Card HVS-38UDIF: HVS-38UC/DC Interface Card HVS-38UC: Up-converter Card HVS-38DC: Down-converter Card HVS-38ED: Editor Interface HVS-38PSM: Redundant Power Supply for Main Unit HVS-12PSO: Redundant Power Supply for OU HVS-38PSO: Redundant Power Supply for OU HVS-TALR20/32: Tally Relay Unit HVS-TALOC20/32: Tally Open Collector Unit HVS-AUX8/16/32: 8/16/32-button AUX Control Panel HVS-AUXRK: AUX Panel Extension KitHVS-3800HS: HD/SD switchable model
Supported format;
SD formats: 525/60 (NTSC), 625/50 (PAL)HVS-3800S: SD model
Easy Upgrading to HD/SD
New Control Panel
HVS-12ROUA:Rack moutable
12-button control panelHVS-16OUA: 16-button control panel HVS-24OUA: 24-button control panel 4RU Main Unit
High-performance, Compact DVEs
Real 3-dimensional DVEs
Real-time rendering for mapping images to 3D shapes such as Page Turn and Sphere and providing complete 3D processing for DVEs
Filtering is optimized for the image size for improved enlargement and reduction quality, and an edge key generation function is used to reduce jagginess for higher image quality
Defocus effects can be applied as sub effects and used simultaneously with DVEs
In addition to regular decay trails and star trails, border trails are also available that provide trail effects in border colors
Includes an internal still image memory within DVEs to enable mapping of still images to the side image of a pizza box or the back side of a page turn.Color Correction Features Added
Three color correction functions (balance, differential and sepia)6 Keyers
Up to 6 Still Stores
Line DVEs
Forced Background
Event Memory
Additional Still Image Storage
*This option does not support recording or playback of the following formats:
1080/24p, 1080/24sF, 1080/23.98p and 1080/23.98sFMovie Playback Function
- HVS-38SSAM6: HD: 3 sec., 2 ea. or SD: 19 sec., 2 ea.
- HVS-38SSAM12: HD: 6 sec,. 2 ea. or SD: 38 sec., 2 ea.Up to 16 AUX Bus Outputs
4-split Screen Display
Up Converter and Down Converter Installatin
*The down converter output allows installation of one channel only.Editor Support
Sequence Function
User Setting Buttons
Motion Blur
Gradation Matte
Edit Preview
Safety Area Marker and Color Bars
ANC Data Through/Swap Function
Network Support
Options
Input Card / DVE / Color Corrector Options
Expansion Options / Editor Interface
Configration of expansion options
Hardware options
