Routing Switcher

DRS Series

Compact and Inexpensive Multi Bit Rate Video Routing Switcher. HD/SD-SDI and DVB-ASI signal formats supported.

Lineup

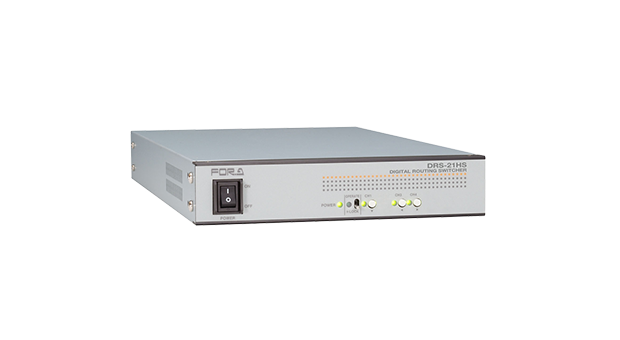

  • DRS-21HS: 2 x 1 HD/SD Routing Switcher

  • DRS-22HS: 2 x 2 HD/SD Routing Switcher

  • DRS-41HS: 4 x 1 HD/SD Routing Switcher

  • DRS-42HS: 4 x 2 HD/SD Routing Switcher

Features

  • 143 Mbps - 270 Mbps and 1.485 Gbps or 1.485/1.001 Gbps bit-rate supported

  • DVB-ASI signal format supported

  • Automatic cable equalization, re-clock function

  • Local control panel

  • GPI control or RS-232C/422 communications control

  • Tally output

  • Switch over during blanking period possible when inputting reference signal
    (Cannot be used as a blanking switcher with DVB-ASI signal)

  • EIA 1 U half rack size
